XML_GET_LAST_CHILD

ScriptEigener Objekttyp in der Automation Engine function: Identifies the last sub-element of an element

Syntax

XML_GET_LAST_CHILD (Reference)

Syntax	Description/Format
Reference	Reference to the element whose sub-element is to be identified Format: script literal or script variable

Return code
Reference to the last sub-element " " - There is no sub-element.

Comments

The script function identifies the last sub-element of an element in an XML document.

A handle must be given to the script function so that it can access the appropriate last sub-element. This reference specifies the position in the XML document. The very first handle is the one which is returned by XML_OPEN. It refers e.g. to the root element Content of the structured documentation.

XML_GET_LAST_CHILD switches a level deeper into the structure starting at the specified element. XML_GET_NEXTSIBLING retrieves the subsequent element on the same level.

Example

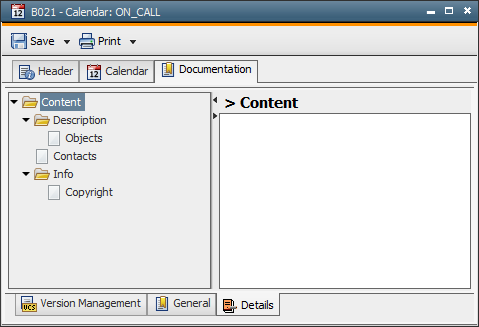

The following example determines the name of the last sub-element Info with the main element "Content" being the starting point.

:SET &XMLDOCU# = XML_OPEN(DOCU,"ON_CALL","@Details")

:SET &HND# = XML_GET_LAST_CHILD(&XMLDOCU#)

:   IF &HND# <> ""
:      SET &NAME# = XML_GET_NODE_NAME(&HND#)
:      PRINT "Last sub-element: &NAME#"
:   ELSE
:      PRINT "No sub-element"
:   ENDIF

:XML_CLOSE

Script element	Description
XML_GET_FIRST_CHILD	Identifies the first sub-element of an element
XML_GET_NEXTSIBLING	Identifies the subsequent element
