Scheduler Type - IWS

Automic Automation Intelligence supports the following IBM workload Schedulers:

  • IWS/D
  • IWS/z

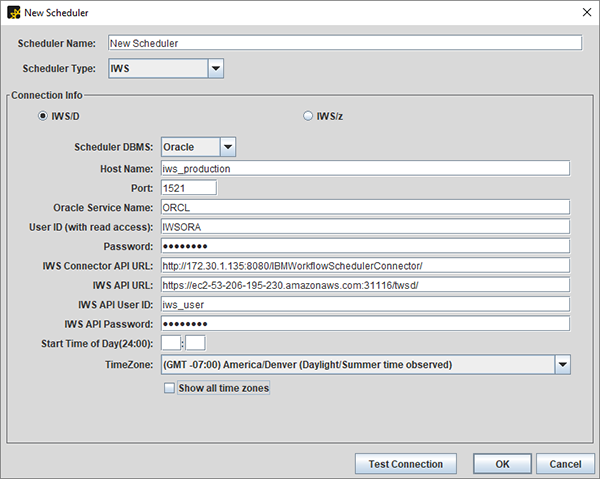

IWS/D

If IWS/D is selected as the scheduler type, the user must provide the following information:

  • Scheduler DBMS: Select the database type of the IWS/D database

  • HostName: Enter the hostname of the IWS/D database

  • Port: Enter the port that the IWS/D database is on

  • Oracle Service Name: Enter the Oracle service name

  • User ID: Enter the name of the user that has read access to the IWS/D database

  • Password: Enter the password

  • IWS Connector API URL:

  • IWS API URL:

  • IWS API User ID:

  • IWS API Password: Enter the password

  • Start Time of Day(24:00):

  • TimeZone: Enter the timezone where the IWS/D database is located.

IWS D

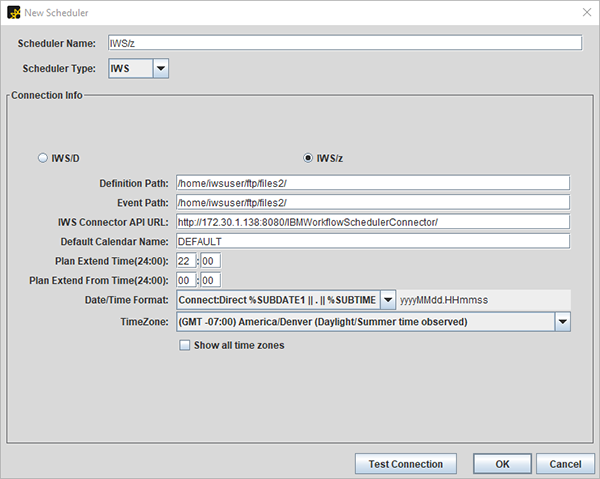

IWS/z

When IWS/z is selected as the scheduler type, the user must input the following information:

  • Definition Path:

  • Event Path:

  • IWS Connector API URL:

  • Default Calendar Name:

  • Plan Extend Time(24:00):

  • Plan Extend From Time(24:00):

  • Date/Time Format:

  • TimeZone: Enter the timezone where the IWS/z database is located

IWS/z
