Transitioning from Automic Automation On-Premises to Automic SaaS

This section of the documentation explains the Automic SaaS architecture, the differences between the on-premises and the SaaS models and it outlines the procedure to transition from an on-premises Automic Automation instance to Automic SaaS. The procedure comprises the following steps:

Important!

  • Make sure you have all the information required ready before transitioning to an Automic SaaS model. For more information, see Getting Started with Automic SaaS for Administrators.

  • As a system administrator, before you start transitioning your system, you have to make sure you have a strong understanding of the differences between both offerings, paying special attention to the architectural aspects, as well as Agent authentication, which is the main technical hurdle in the transition process. You will find this information in this topic and in the videos linked here.

This page includes the following:

Automic SaaS Architecture

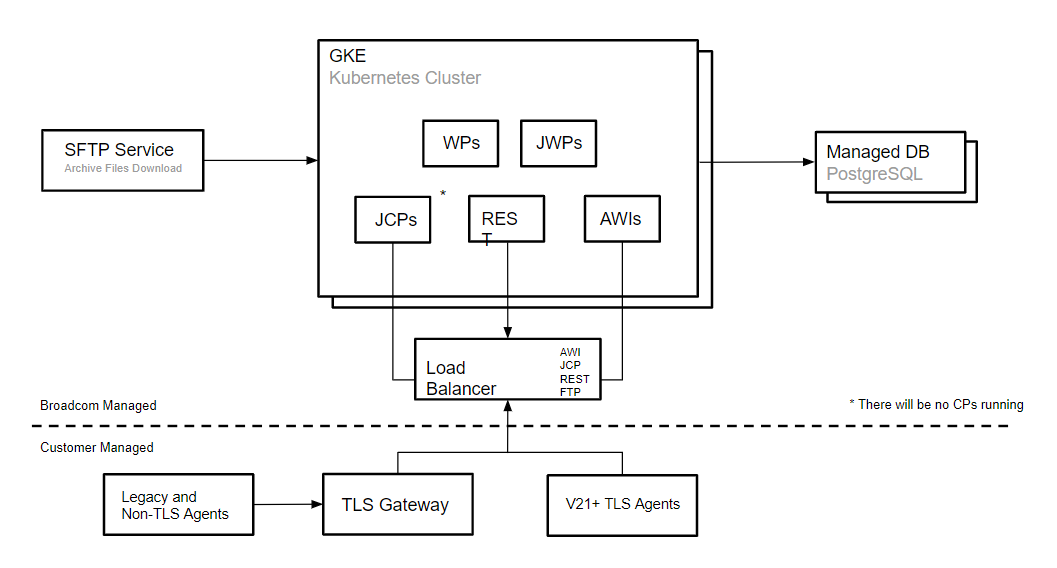

Automic SaaS is Automic Automation Kubernetes Edition hosted on the Google Cloud Platform. The following graphic illustrates the most important Automic SaaS components and identifies who manages them:

For more information, see About Automic SaaS.

Automic SaaS vs Automic Automation On-Premises

The main architectural difference lies in the scope of responsibilities and the reduction of technical components that system administrators must deploy and maintain. While the backend / server components are Broadcom's responsibility, system administrators and object designers are still responsible for process configuration and automation - that is, the functional elements of an Automic SaaS instance - such as deploying Agents, managing Clients other than Client 0, including security and User management in those Clients and so on.

In some cases, you have restricted access to certain functionalities - for example, certain changes to system settings. However, you can place a service request to change them.

For more information, see:

The table below lists different aspects of an Automic Automation on-premises instance that lie completely in the hands of administrators and/or object designers and compares them to an Automic SaaS environment.

Function On-Premises SaaS
AE / DB / Utilities / AWI Yes No, Broadcom
Agents Yes Yes
Muti-type DB Yes No, PostgreSQL managed by Broadcom
Admin privileges Yes Restricted & Service Request

Legacy GSS Agents

 Yes Yes
Legacy Java API Yes Via code change, TLS and JCP
Transport Case for transition Yes No: Service Request (v24.2+)
User Management Yes Yes
Multi-Client Yes Service Request

Supported Agents

Automic SaaS instances support the use TLS/SSL Agents version 21 and higher, as well as GSS Agents, which are older Agents that are not TLS/SSL enabled. Since there are no communication processes (CPs) available on Automic SaaS environments, GSS Agents require the TLS Gateway to connect to the Java communication process (JCP) in the Kubernetes cluster through a TCP load balancer.

All systems hosting TLS/SSL Agents and the TLS Gateway require Java to support the TLS/SSL certificate based encryption and authentication and to support the Java version of the Linux x64 and Windows Agent.

For more information, see:

Education

The Broadcom Software Academy provides a wide range of free online trainings. For information about how to navigate through the Academy and on how to register for courses, see Free Online Courses.

The following course(s) are associated with this topic:

Watch the Video

This course contains several videos. The first one deals specifically with the Automic SaaS architecture, the difference between both models (on-premises and SaaS) and your first steps when onboarding on to Automic SaaS: Transitioning from Automic Automation On-Premises to Automic SaaS - Overview.

This section includes the following pages:
