Incident Remediation using Webhook Events

As an administrator, responsible for hardware infrastructure, you can use Webhook Event objects with your ticketing system for incident remediation. This object works with the Event Engine feature and helps you solve routine incidents quickly, saving you time to solve more challenging problems.

More Information:

This Event Engine feature can be used to react to internal and external events. The following use case is based on an external event that uses a Webhook Event object to listen and received incoming external event payloads.

This page includes the following:

What Will You Learn?

How to create an IA Event Definition
How to create a Webhook Event object based on an Event Definition
How to map external event payloads using JSONPath
How to filter received event payloads using conditional operators

Prerequisites

To use the Webhook Event feature, the following components and knowledge are required:

An installation of Analyticswith the Rule Engine. See: Installing Analytics
The Analytics Action Pack, Rule Pack and AWI Plug from Marketplace
Prior implementation knowledge of Event and Variable(VARA)objects
A good understanding of webhooks and how they are implemented
Access to an external system that enables the use of webhooks
Knowledge of the JSONPath syntax
Knowledge of your external system's JSON schema

Objects in this Example

Use Case Description

This example is based on the following scenario:

A monitoring tool observes a company's hardware infrastructure events.
A server disk capacity incident occurs.
The monitoring tool reports the incident to JIRA and an incident ticket is created. A webhook is setup in JIRA and a Webhook Event object is created in AWI to listen for JIRA events.
The JIRA event payload matches Event Engine Rules for the incoming JIRA incident.
The Event Engine reacts in real-time and either executes an Automated Task to fix this issue or enrich the incident data if a solution cannot be found.

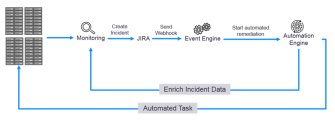

The following diagram shows the incident remediation process:

Create a Scoped API Key

Webhook endpoints require a scoped API key. The scoped key must be generated for the client on which the Webhook object is running. If the external webhook API (for example, JIRA) is unable to send the authorization key in the HTTP header, it can also be provided as an URL parameter.

Example:

http://host:port/analytics/api/v1/100/12345?authorization=1cb812db-6616-49da-af97-3719aeaddc24

For further information, see Analytics REST API - General Info

Create an IA Event Definition

The first stage is to create an IA Event Definition for the incoming JIRA event payload. It contains the event structure required for the Event Engine to trigger Rules and execute processes (Jobs for example).

In this example, we are going to create an Event Definition with Attribute Keys based on a JIRA issue created event.

Login into an Automation Engine Client where an IA Agent is assigned. See: Assigning Clients to Agents
Create an IA Event Definition. Click Process Assembly in AWI. Then:
- Click Add Object from the toolbar
- Select and expand Variable tree
- Select and expand XMLvariables, then select IA > EVENT_DEFINITION Variableto create the definition sheet
- Name the IA Event Definition sheet JIRA.ISSUE.EVENT
Add the Attribute Keys to the newly created JIRA.ISSUE.EVENT Event Definition. To do this, we need to know the content and structure of the received JIRA event payload.
There are several ways to get this information:
- Use JIRA webhook web pages to provide us with resources
- Create or use an existing endpoint to make a test event payload
Important! The JIRA event payload is based on the JSONPath structured schema. When populating the Event Definition Key Attributescolumn, we need to transform this schema into a flat structure.

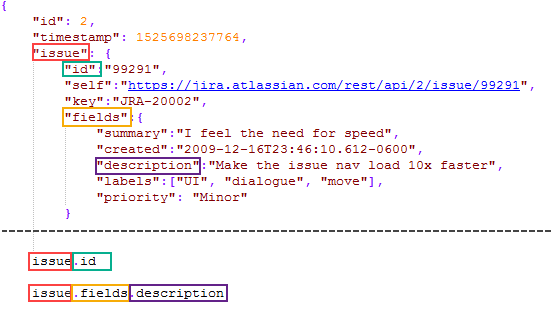

The following example shows how we translate the transform JSONPath structured data into a flat structure.

Note: Although there is no rule for naming Key Attributes, we have named them as they appear in the JSON. This enables you to map them easily when you create a Webhook Even

The following columns are populated:
- Attribute Key
- Description
- Type
The information used to create the Event Definition is largely based on JIRA issue related fields, however we have also include user and eventrelated fields.

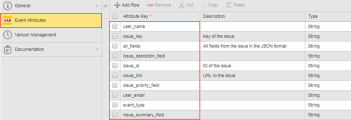

Here is the full list created in the Event Definition Attribute Key column:

Create and Map the Webhook Event

We have now created and populated JIRA.ISSUE.EVENT Event Definition. Its now possible to create a Webhook Event object in AWI.

At this point we are creating an endpoint for JIRA to send event payloads to the Event Engine to be processed.
1. In AWI, click Process Assembly.
  - Click Add Object from the toolbar
  - Select and expand Event (EVNT) tree
  - Select and expand IA variables, then select WEBHOOK Event

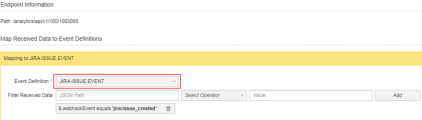

2. In the Webhook Event we select JIRA.ISSUE.EVENT Event Definition from the drop-down list.
3. We now need to map all the Attribute Keys in the Event Definition sheet to the JSON path. We already know the content and structure of our JIRA event payload, as it to helped us previously build the JIRA.ISSUE.EVENT Event Definition.

  Important! Always test your JSONPath expressions against the Event Engine before putting them into production. JSONPath Expressions created in external tools might not work as expected as there are no common standard for the JSONPath query syntax.

  Finally each Attribute Key is mapped to its corresponding JSONPath.

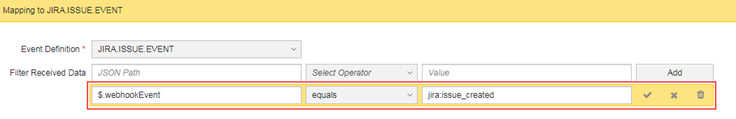

4. To trigger a Rule in the Event Engine, we will create a conditional filter that is applied when an "issue_created" event is received.

  Using JIRA online information for the syntax, we create the following filter:

  $webhookEvent is equal to jira:issue_created.

  Note: The filter operator table has the same operators as outlined in the Simple Rule.
