Rule Engine Operational Documentation
The Analytics Rule Engine uses Apache Flink to deliver a stream processing service for Event Engine feature. This document is aimed at experienced operational teams, that require information about the CA Automic implementation Flink.
Notes:
- For further information regarding the technical details of Flink, see: https://flink.apache.org/
- This document is aimed at experience users of Apache Flink, it presumes that you have some basic knowledge of the topics outline.
This page includes the following:
Why Flink is Used as the Rule Engine
- The Flink stream processing framework is fast, reliable, and efficient
- A scalable solution that runs on 1 to n machines
- Takes load balancing away from AE
See: http://flink.apache.org/introduction.html#features-why-flink
Event Engine Flow
As the Rule Engine is based on Flink, the architecture remains common.
How the Rule Engine Interfaces with Analytics
The interface between Analytics and the Rule Engine is configured using the application.properties file that is located in following directory: <Automic>/Automation.Platform/Analytics/backend.
Important! collector.events.enabled is disabled by default (if not using the one-installer) and must be set to true explicitly.
Example of the default Rule Engine configuration:
##################### ## Events ingestion # ##################### # Enable/disable event ingestion collector.events.enabled=true ########################## ## Rule Engine settings ## ########################## # Flink job manager flink.host=localhost #flink.port=6123 #flink.web_port=8081 # Use SSL for connecting to Flink #flink.use_ssl=false # Verify SSL certificate #flink.disable_self_signed_certificates=true # Job monitoring interval #flink.monitoring_interval_seconds=60 # Heartbeat interval to check for abandoned jobs #flink.monitoring_heartbeat_interval_minutes=3
Consuming Events
Kafka uses Topics as term to separate different streams of data. The Rule Engine uses Event definition as the entity, where there is one separate Kafka topic per client and event definition.
Executing Rules
- A rule is not a job and does not contain any JCL
- Rules are a subtype of Event (EVNT) objects (in Automation Engine terms) so they are more related to file events

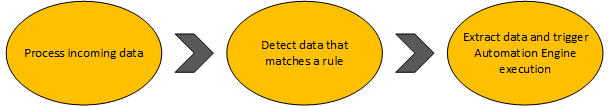

How Incoming Data is Transformed with the Rule Engine

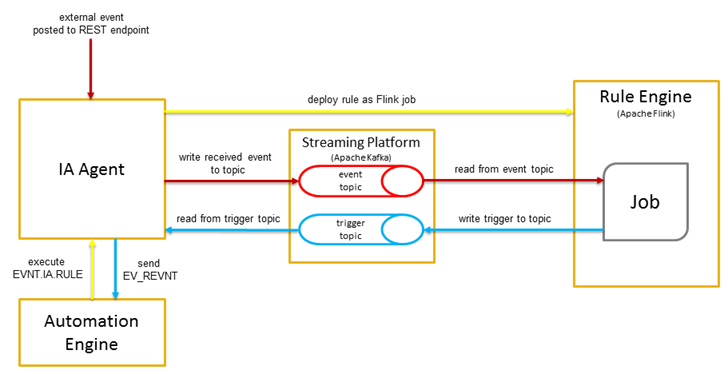

The diagram following how data is processed from IA Agent to Streaming Platform and to the Rule Engine.
Note: One Streaming Platform (Kafka) event topic per client, for example, 99_events.
---------: execute a rule
--------: Ingest external events
--------: Trigger if incoming events match a rule
