Transitioning from Automic Automation On-Premises to Automic SaaS

Automic SaaS Architecture

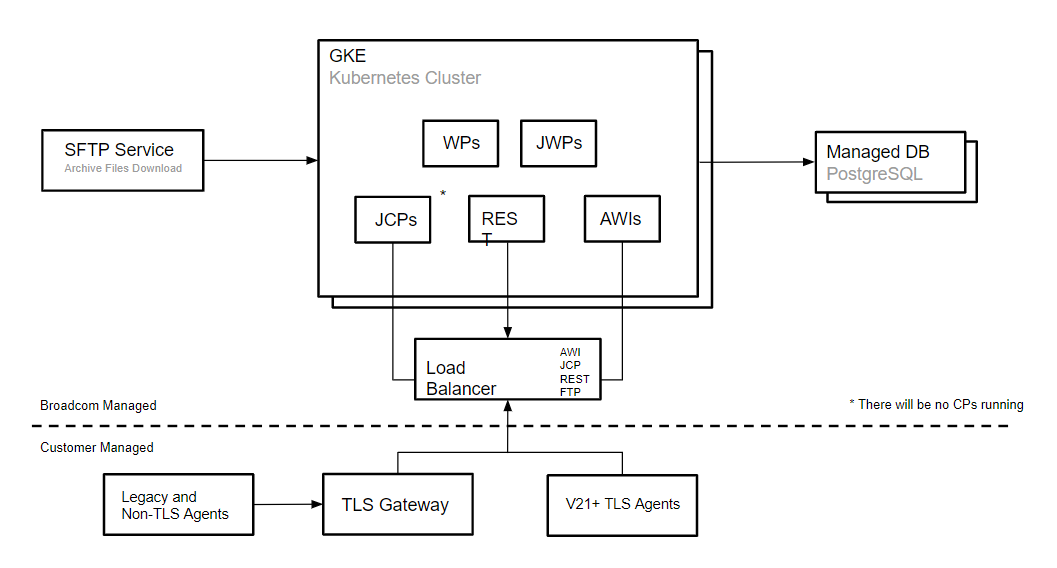

Automic SaaS is Automic Automation Kubernetes Edition hosted on the Google Cloud Platform. The following graphic illustrates the most important Automic SaaS components and identifies who manages them:

For more information, see About Automic SaaS.

Automic SaaS vs Automic Automation On-Premises

The main architectural difference lies in the scope of responsibilities and the reduction of technical components that system administrators must deploy and maintain. While the backend / server components are Broadcom's responsibility, system administrators and object designers are still responsible for process configuration and automation - that is, the functional elements of an Automic SaaS instance - such as deploying Agents, managing Clients other than Client 0, including security and User management in those Clients and so on.

In some cases, you have restricted access to certain functionalities - for example, certain changes to system settings. However, you can place a service request to change them.

For more information, see:

• Getting Started with Automic SaaS for Administrators

• Clients and Users in Automic SaaS

The table below lists different aspects of an Automic Automation on-premises instance that lie completely in the hands of administrators and/or object designers and compares them to an Automic SaaS environment.

Function	On-Premises	SaaS
AE / DB / Utilities / AWI	Yes	No, Broadcom
Agents	Yes	Yes
Muti-type DB	Yes	No, PostgreSQL managed by Broadcom
Admin privileges	Yes	Restricted & Service Request
Legacy GSS Agents	Yes	Yes
Legacy Java API	Yes	Via code change, TLS and JCP
Transport Case for transition	Yes	No: Service Request (v24.2+)
User Management	Yes	Yes
Multi-Client	Yes	Service Request

Supported Agents

Automic SaaS instances support the use TLS/SSL Agents version 21 and higher, as well as GSS Agents, which are older Agents that are not TLS/SSL enabled. Since there are no communication processes (CPs) available on Automic SaaS environments, GSS Agents require the TLS Gateway to connect to the Java communication process (JCP) in the Kubernetes cluster through a TCP load balancer.

All systems hosting TLS/SSL Agents and the TLS Gateway require Java to support the TLS/SSL certificate based encryption and authentication and to support the Java version of the Linux x64 and Windows Agent.

For more information, see:

• Securing Connections to the AE (TLS/SSL)

• TLS Gateway

• Connecting to AWI, the JCP and REST Processes Using an Ingress

• Installing and Configuring Agents for Container-Based Systems

• Installing the Agent for x64 Linux (Java)

• Installing the Agent for Windows (Java)

Education

The Broadcom Software Academy provides a wide range of free online trainings. For information about how to navigate through the Academy and on how to register for courses, see Free Online Courses.

The following course(s) are associated with this topic:

• Transitioning from Automic Automation On-Premises to Automic SaaS
