XML_APPEND_CHILD

Use the XML_APPEND_CHILD script function to insert a new sub-element before a specific element of the open XML document. A reference to the element to which the sub-element is allocated needs to be specified, as well as the name/value of the new sub-element.

Important!

• The XML structure is modified in the memory only. You do not see the changes of XML_APPEND_CHILD on the structured documentation page.
• Do not use blanks in the name of the new sub-element.

Tip: Use the XML_OPEN script function to open the XML document. For more information, see XML_OPEN.

Syntax

XML_APPEND_CHILD (Element, Name, Value)

Script Function and Parameters

• XML_APPEND_CHILD

  Adds a new sub-element to an XML element

• Element

  Reference to the element to which a new sub-element will be added
  Format: script literal or script variable

• Name

  Name of the new sub-element
  Format: script literal or script variable

• Value

  Value of the new sub-element
  Format: script literal or script variable

Return Code

This script function returns the reference to the newly inserted sub-element.

Example

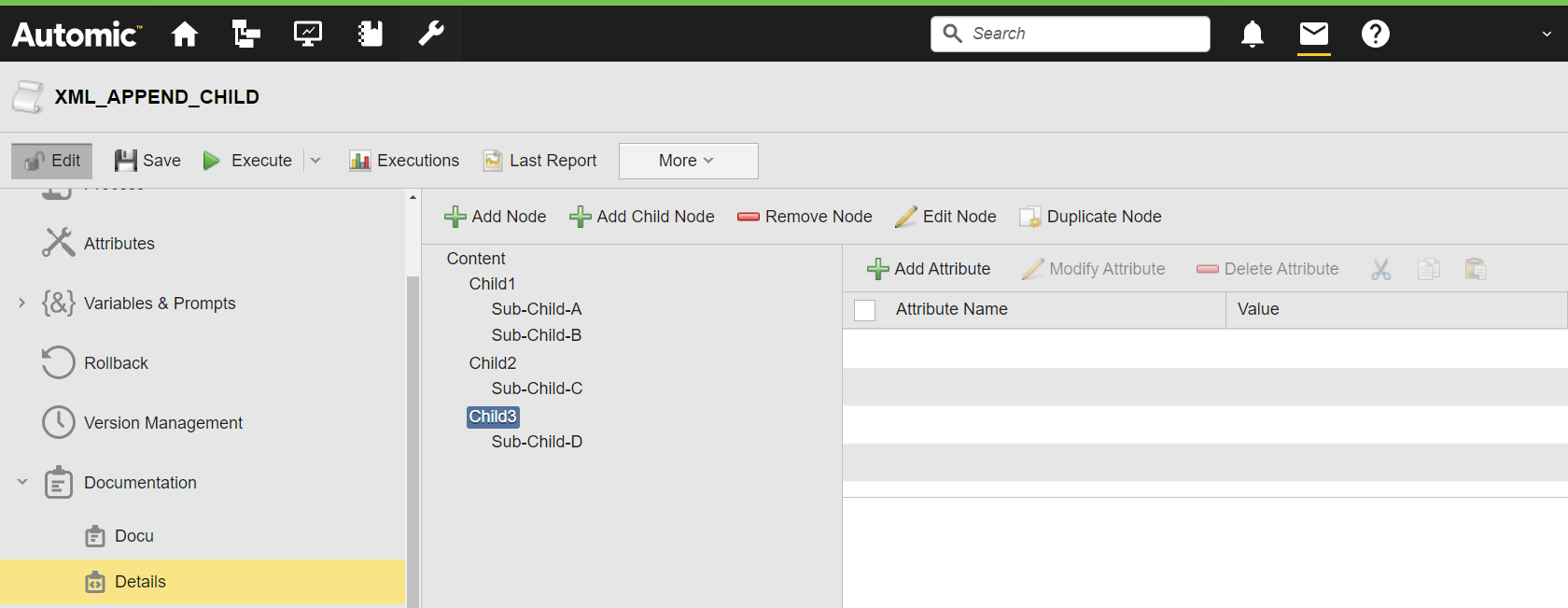

The following example opens the @Details structured documentation page of the own object as an XML document and adds the new 'Child3' element to the 'New_Child' sub-element.

:SET &XMLDOCU#=XML_OPEN(DOCU,,"@Details")

:IF &XMLDOCU# <> ""
:SET &CHILD# = XML_SELECT_NODE(&XMLDOCU#,"Child3")
:SET &NEWCHILD# = XML_APPEND_CHILD(&CHILD#,"New_Child","Test")

:SET &ELEMENT# = XML_GET_FIRST_CHILD(&CHILD#)
:WHILE &ELEMENT# <> ""
: SET &NAME# = XML_GET_NODE_NAME(&ELEMENT#)
: P  'Element: &NAME#'
: SET &ELEMENT# = XML_GET_NEXTSIBLING(&ELEMENT#)
:ENDWHILE

:ENDIF



:XML_CLOSE &XMLDOCU#

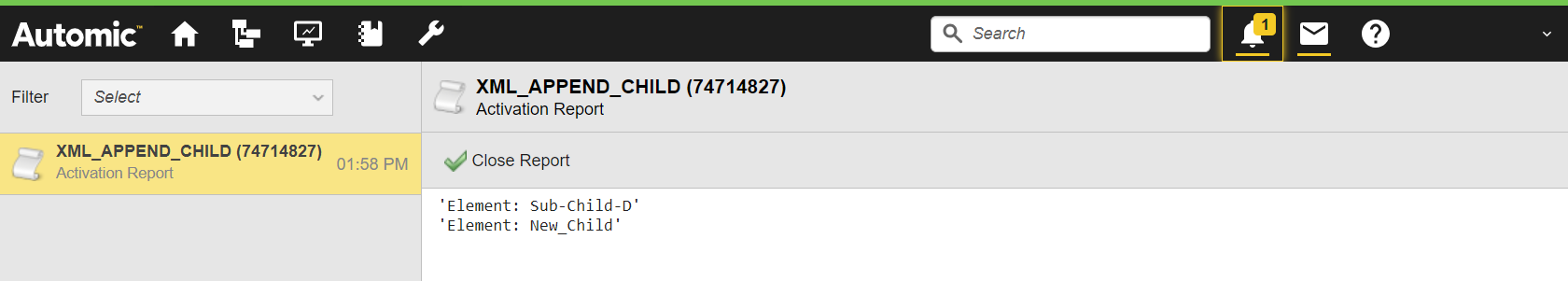

The activation report shows all sub-elements of 'Child3' and the 'New_Child' element:
