XML_SELECT_NODE

Use the XML_SELECT_NODE script function to identify any element in the XML document. Specify a reference that identifies an element that should be used as the search's starting point.

Syntax

XML_SELECT_NODE (Reference, Element)

Script Function and Parameters

XML_SELECT_NODE
Identifies an element
Reference
Reference to the element that serves as starting point
Format: script literal or script variable
Tips: References or handles let you identify and edit a position within the XML document. You can use the following script functions to retrieve handles:
- XML_OPEN
  Returns the very first handle, which refers to the root element
  Use XML_SELECT_NODE with this handle to directly identify an element.
- XML_GET_FIRST_CHILD
  Returns the handle of the first sub-element of an element
- XML_GET_NEXTSIBLING
  Returns the handle of the next element on the same level in the XML document

Element
Name of the element including the path from the starting point.
Note: This script function can only find elements that are sub-elements of the starting point.
Format: script literal or script variable

Return Codes

This script function returns the reference to the element you search or an empty string if the searched element does not exist.

Example

The following example assumes that the ON_CALL_SERVICES Calendar object has a content structure that includes the element 'Description' with a sub-element called 'Objects'. The script intends to retrieve first element directly from the 'Content' root element of the @Details structured documentation page. The text that the 'Objects' sub-element includes is printed in the activation report.

:SET &XMLDOCU# = XML_OPEN (DOCU,"ON_CALL_SERVICES","@Details")
:SET &HND# = XML_SELECT_NODE (&XMLDOCU#,"Description/Objects")
:SET &NODETEXT# = XML_SET_NODE_TEXT (&HND#,"Related Objects")
:SET &TEXT# = XML_GET_NODE_TEXT (&HND#)

:PRINT "Text of the element: &TEXT#"

:XML_CLOSE

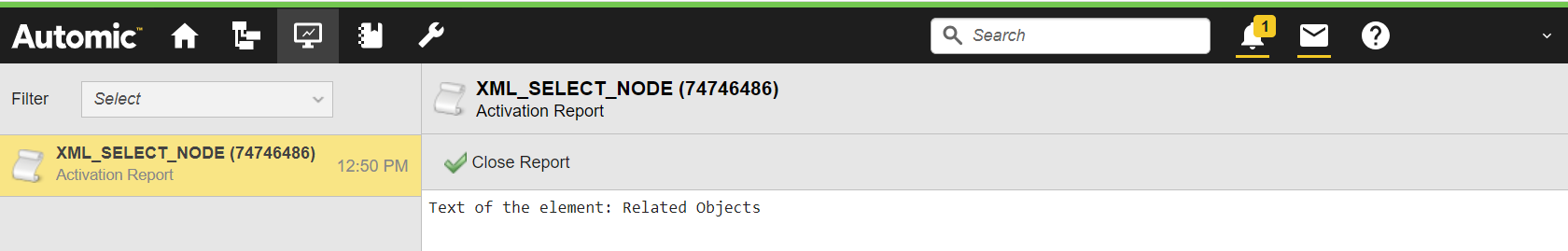

The activation report shows the text that the 'Objects' sub-element includes:
