XML_APPEND_CHILD

Use the XML_APPEND_CHILD script function to add a new sub-element to a specific element of the open XML document. You specify a reference to the element that receives the sub-element, together with the name and value of the new sub-element.

Important!

The XML structure is modified in memory only. The changes made by XML_APPEND_CHILD are not visible on the Documentation page.
Do not use blanks in the name of the new sub-element.

Tip: Use the XML_OPEN script function to open the XML document. For more information, see XML_OPEN.

Syntax

XML_APPEND_CHILD (Element, Name, Value)

Parameters

Parameter	Description	Format
Element	Reference to the element to which a new sub-element is added	Script literal or script variable
Name	Name of the new sub-element	Script literal or script variable
Value	Value of the new sub-element	Script literal or script variable

Return Codes

The script function returns the reference to the newly inserted sub-element.

Examples

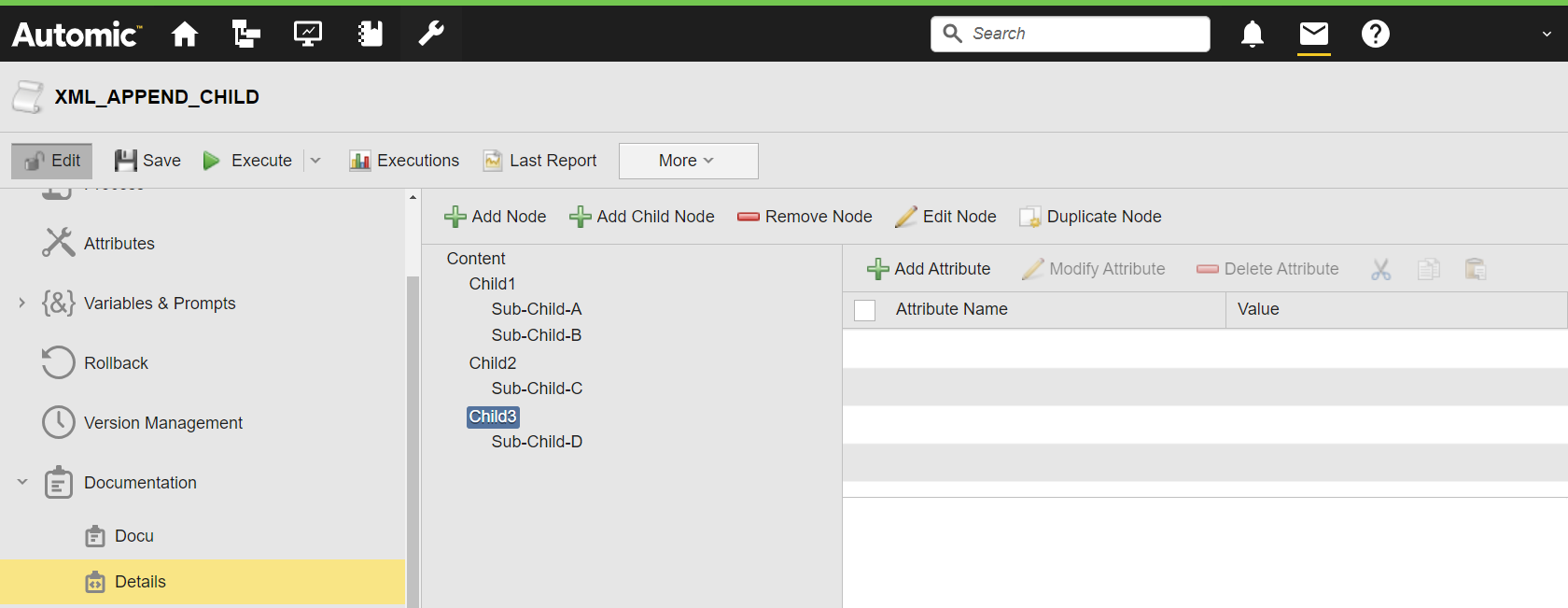

The following example opens the @Details structured Documentation page of the current object as an XML document, selects the Child3 element, and adds a new New_Child sub-element to it.

:SET &XMLDOCU#=XML_OPEN(DOCU,,"@Details")

:IF &XMLDOCU# <> ""

: SET &CHILD# = XML_SELECT_NODE(&XMLDOCU#,"Child3")

: SET &NEWCHILD# = XML_APPEND_CHILD(&CHILD#,"New_Child","Test")

: SET &ELEMENT# = XML_GET_FIRST_CHILD(&CHILD#)

: WHILE &ELEMENT# <> ""

: SET &NAME# = XML_GET_NODE_NAME(&ELEMENT#)

: P 'Element: &NAME#'

: SET &ELEMENT# = XML_GET_NEXTSIBLING(&ELEMENT#)

: ENDWHILE

:ENDIF

:XML_CLOSE &XMLDOCU#

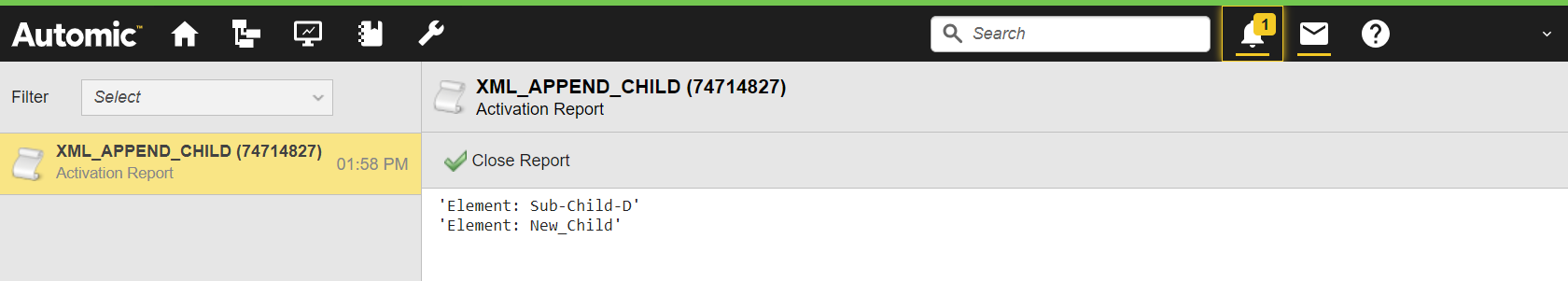

The activation report shows all sub-elements of Child3, including the new New_Child element:
