XML_APPEND_ELEMENT

Use the XML_APPEND_ELEMENT script function to attach a specific element of the open XML document to another element as a sub-element. Doing so moves the element.

Important! The XML structure is modified in memory only. The changes made by XML_APPEND_ELEMENT are not visible on the Documentation page.

Tip: Use the XML_OPEN script function to open the XML document. For more information, see XML_OPEN.

Syntax

XML_APPEND_ELEMENT (Reference element, Element)

Parameters

Parameter	Description	Format
Reference element	Reference to the element to which the other element is attached as a sub-element	Script literal or script variable
Element	Reference to the element that is attached (and thereby moved)	Script literal or script variable

Return Codes

The script function returns the reference to the attached element.

Examples

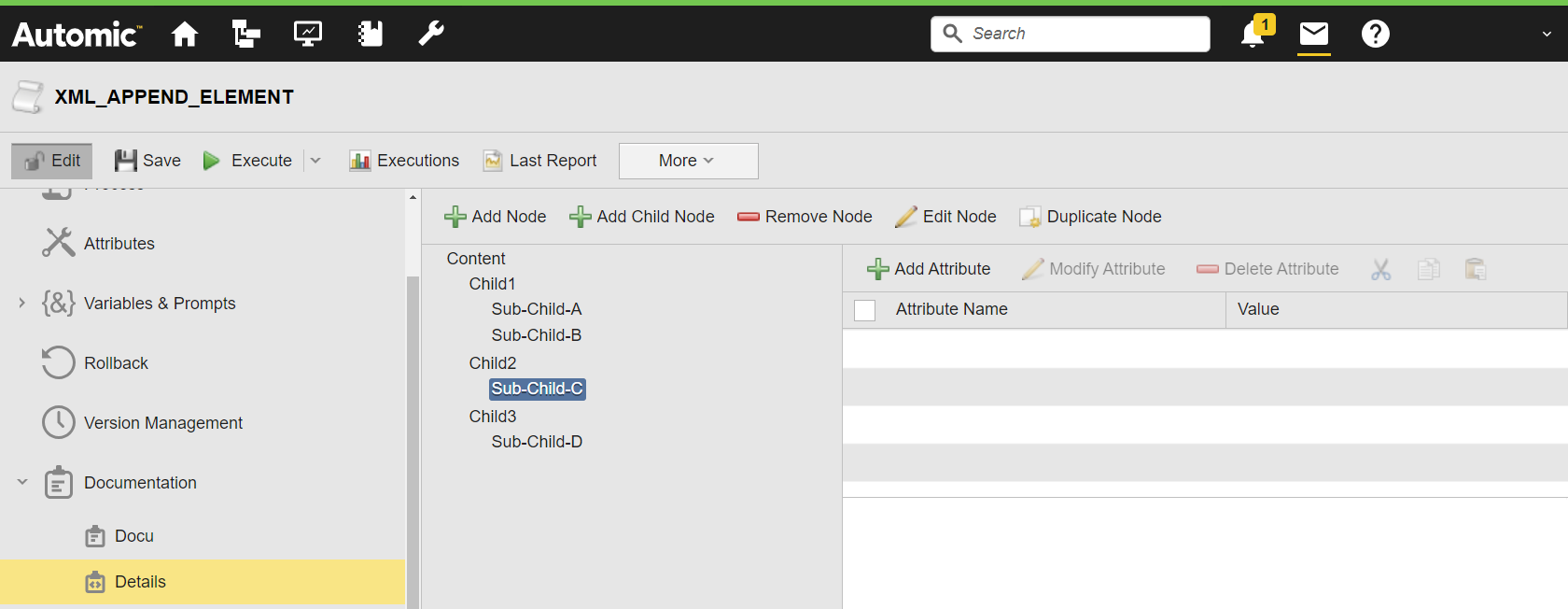

The following example opens the @Details structured Documentation page of the current object as an XML document. Sub-Child-C, which is located within Child2, is then attached to the first element of the XML structure (Child1).

:SET &XMLDOCU#=XML_OPEN (DOCU,,"@Details")

:IF &XMLDOCU# <> ""

: SET &FIRST# = XML_GET_FIRST_CHILD(&XMLDOCU#)

: SET &TOAPPEND# = XML_SELECT_NODE(&XMLDOCU#,"Child2/Sub-Child-C")

: SET &CLONECHILD# = XML_APPEND_ELEMENT(&FIRST#,&TOAPPEND#)

: SET &ELEMENT# = XML_GET_FIRST_CHILD(&FIRST#)

: WHILE &ELEMENT# <> ""

: SET &NAME# = XML_GET_NODE_NAME(&ELEMENT#)

: P 'Element: &NAME#'

: SET &ELEMENT# = XML_GET_NEXTSIBLING(&ELEMENT#)

: ENDWHILE

:ENDIF

:XML_CLOSE &XMLDOCU#

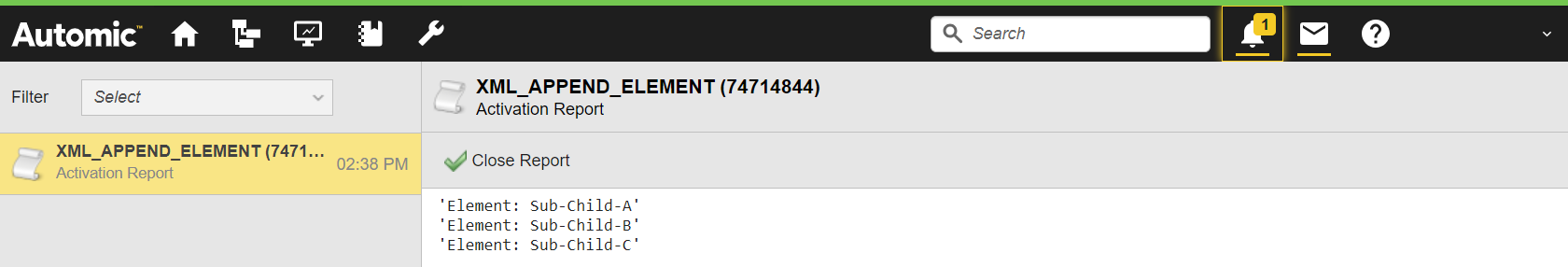

The activation report shows all the sub-elements that are now located within the Child1 element:
