Configuration and Maintenance
This section details several configuration options of Univiewer Management Server:
UVMS is designed to support a large number of UniJob and Dollar Universe nodes. The maximum number of supported nodes depends on various factors including both the hardware and Optional services enabled on UVMS.
UVMS can support the desired number of environments if the hardware supports it and with the proper software configuration. This information is detailed in the Dollar Universe Sizing Guide.

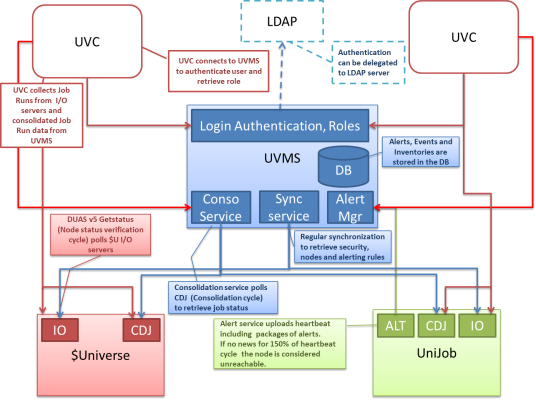

Figure 6: UVMS connection diagram
- Univiewer Console connects to Dollar Universe and UniJob IO server for operations on objects and security.
- Univiewer Console collects Job Run data from Dollar Universe and UniJob CDJ servers.
- Univiewer Console connects to Univiewer Management Server for authentication, packages, inventories, node status, node list and job run summary.
- Univiewer Management Server connects to Dollar Universe and UniJob CDJ for job run summary consolidated data (if consolidation has been enabled).
- Univiewer Management Server connects to Dollar Universe IO for node status (if “Get status for Dollar Universe Nodes” has been enabled) and security.
- UniJob Alert Service connects to Univiewer Management Server for heartbeat and Alerts.
- Univiewer Management Server may connect to LDAP to delegate authentication.
