Azure Logic Apps Jobs: Run Workflows

Azure Logic Apps Run Workflow Jobs allow you to run a workflow and all the activities grouped in the workflow in your Logic Apps workspace from Automic Automation.

This page includes the following:

On the Run Workflow Job page, you define the parameters relevant to run a pipeline in Azure Logic Apps.

• Connection

  Select the Azure Logic Apps Connection object containing the relevant information to connect to the application.

  To search for a Connection object, start typing its name to limit the list of the objects that match your input.

• Hosting Plan

  Checkbox that allows you to select from two options:

  • Consumption (default)

    Consumption-based plan. A Consumption logic app can have only one workflow that runs in multi-tenant Azure Logic Apps.

  • Standard

    A Standard logic app can have one or multiple workflows that run in single-tenant Azure Logic Apps. Enter the name of the logic app in Azure in the Logic App Name field if you select this option.

• Workflow Name

  Enter the name of the job that should run, or select it from the dropdown list.

• Trigger Name

  Enter the name of the trigger to be pushed, or select it from the dropdown list.

• Payload

  The payload data type.

  • None (default)

    Select this option if you do not want to pass any workflow parameters to Azure Logic Apps.

  • JSON

    Use the JSON field to enter the JSON payload definition.

    Important!

    There are many options available to define the JSON payload. For more information and examples of the JSON definition, see Defining the JSON.

    For details about the Azure Logic Apps documentation, see https://learn.microsoft.com/en-us/azure/logic-apps/logic-apps-overview#key-terms

  • File Path

    Use the JSON File Path field to define the path to the JSON file containing the attributes that you want to pass to the application. Make sure that the file is available on the Agent machine (host).

  Note:

  The Pre-Process page allows you to define the settings of the Jobs using script statements. These statements are processed before the Pipeline Run Job is executed, see Setting Job Properties Through Scripts.

This section gives you examples of how you could define the JSON field when defining a Run Workflow Job. You have different options available.

Simple JSON Definition

The first option to define the JSON field is a simple payload definition. To do so, make sure you define the parameters required to define the workflow, such as the name and the default value.

Using Variables

You can also use variables in the payload definition.

Example

In the Payload field, enter the following:

&WORKFLOWPARA#

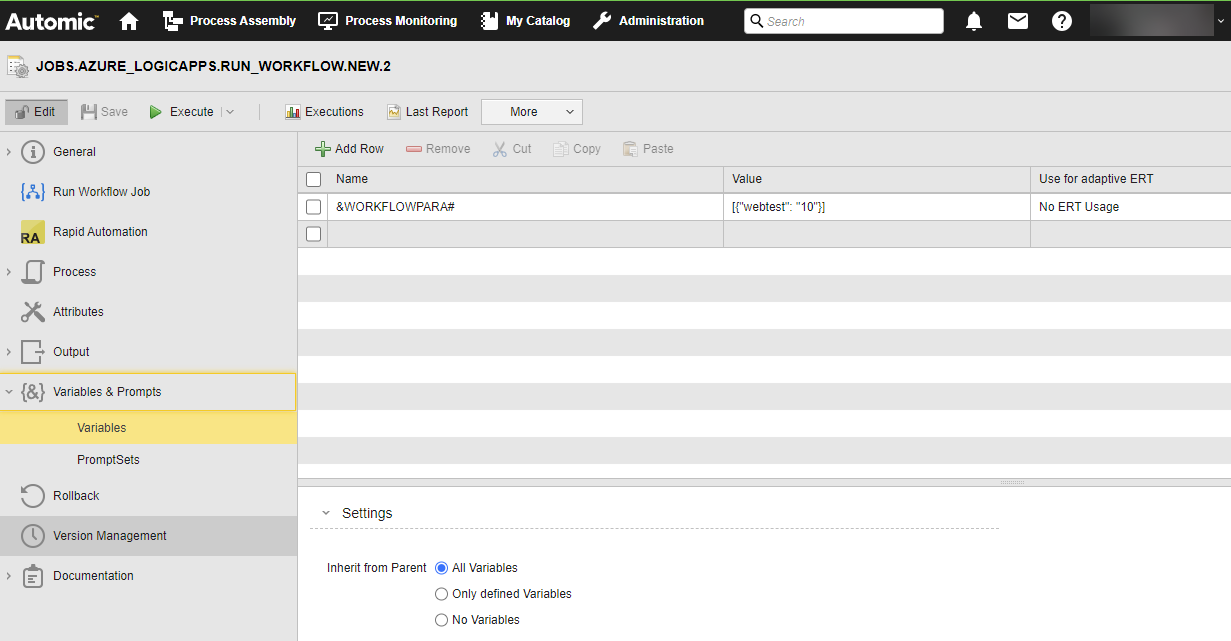

If the variable is not defined yet, you must define it now. You do it on the Variables page of the Run Workflow Job definition:

(Click to expand)

When you execute the Job, the variables will be replaced with the value you have just defined. This is visible in the Agent log (PLOG), see Monitoring Azure Logic Apps Jobs.

Run Workflow Job in a Workflow

You can also use the JSON field if you want to include a Run Workflow Job in a Workflow and you want to use Automation Engine variables in it.

Example

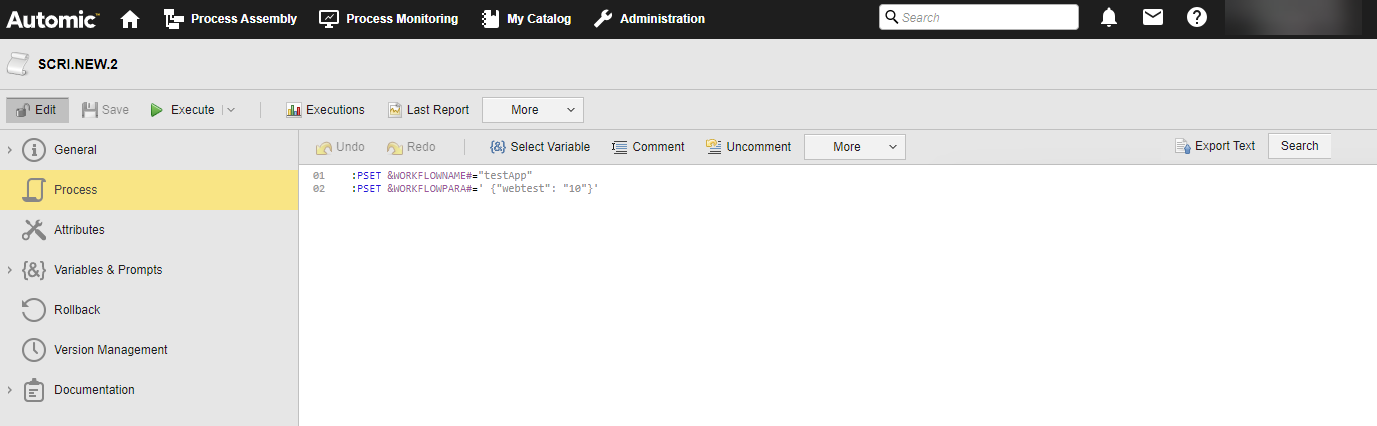

In the Workflow, a Script object (SCRI) with the variable definition relevant for the Workflow Name and the JSON precedes your Run Workflow Job:

(Click to expand)

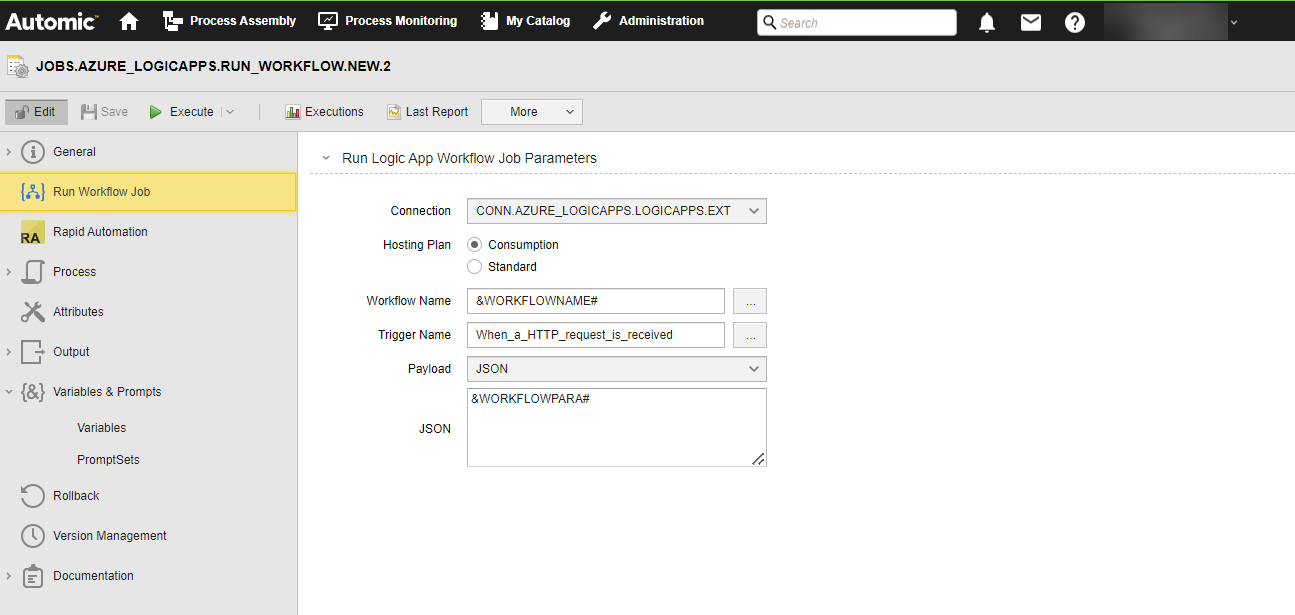

In the Run Workflow Job definition, you include those variables:

(Click to expand)

When the Job is executed, the variables will be replaced with the value you have just defined. This is visible in the Agent (PLOG) report, see Monitoring Azure Logic Apps Jobs.
