Configuring AutoSys Schedulers (Thick Client)

This topic explains how to add and configure a scheduler for AutoSys. You can add AutoSys schedulers before installing the AutoSys Connector. However, you will not be able to use them until the connector is up and running. For more information, see AAI Integration for AutoSys .

You can add AutoSys schedulers either from the thick client or from the AAI Web UI. This topic explains how to add them from the thick client.

1. In the Admin > Schedulers tab click the plus icon.

2. In the Add New Scheduler dialog, enter the name of the scheduler and select the type. The name of the scheduler should be descriptive and easy to understand for all AAI users in your organization.

3. For AutoSys schedulers, this dialog contains the tabs described below.

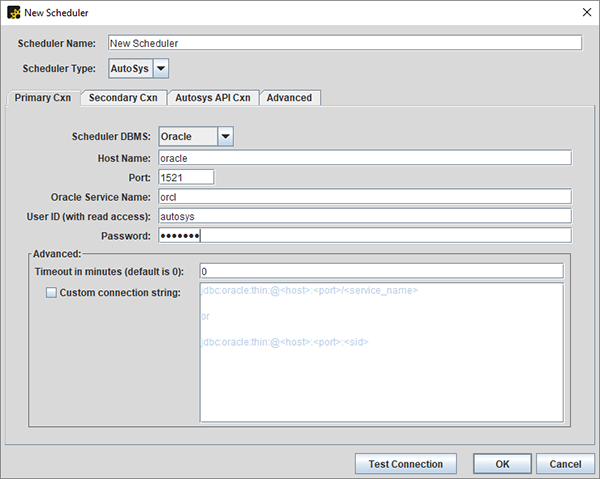

Primary Connection

On this tab you define the instance of AutoSys to which you want to connect. The connection can be either the production instance of AutoSys or the backup AutoSys server, which may be preferable in some environments.

• Scheduler Name: Supplied by user.

• Scheduler Type: AutoSys.

• Scheduler DBMS: Select the database type of the AutoSys database, which can be either Oracle, Sybase or SQL Server.

• Host Name: Enter the hostname of the AutoSys database.

• Port: Enter the port that the AutoSys database is on.

• Database Name/Oracle Service Name: Enter the name of the AutoSys database or Oracle Service Name.

• User ID: Credentials that you need to connect to the AutoSys database.

  Important!

  • AAI reads a specific set of tables to get information out of AutoSys . The user ID that you specify here must have read access to those tables. For a complete list per AutoSys version, see below.

  • You may want to create a dedicated database user for the purposes of AAI. In the case of Oracle, if you do this, you must create synonyms on those tables first so that the user can get to those tables in an unqualified way. This is because Oracle assumes by default that the user that runs a query on the database is also the owner of the table.

• Password: Enter the password.

• Timeout: Optionally, enter a JDBC socket/read timeout in minutes different from the default of 0 (no timeout). Only use it if needed and under guidance from our technical Support team.

• Custom connection string: Optionally, enter a custom JDBC connection string.

User Access to AutoSys Database Tables

Depending on the AutoSys version that the scheduler will connect to, the user must have read access to certain AutoSys database tables. This table provides a list of the tables per AutoSys version:

AutoSys Version	Database Tables
Pre-R11.x instances	alamode calendar event glob job job2 job_con job_status machine proc_event timezones
R11.1	ujo_alamode ujo_event ujo_job2 ujo_job_cond ujo_job_status ujo_jobtype ujo_machine ujo_proc_event ujo_timezones ujo_calendar ujo_glob ujo_job
R11.3	ujo_alamode ujo_calendar ujo_command_job ujo_event ujo_file_watch_job ujo_ftp_job ujo_glob ujo_i5_job  ujo_job ujo_job_cond ujo_job_resource_dep ujo_job_status ujo_jobtype ujo_machine ujo_meta_enumerations ujo_meta_properties ujo_meta_types ujo_micro_focus_job ujo_monitor_object_job ujo_monitor_winevent_log ujo_oraapps_steps ujo_oraapps ujo_peoplesoft_job ujo_proc_event ujo_real_resource ujo_sap_arcspec ujo_sap_infodetail ujo_sap_jobstep ujo_sap_job ujo_sap_prtspec ujo_sap_recipient ujo_sched_info ujo_service_desk ujo_snmp_job ujo_sql_job ujo_sql_proc_parms ujo_strings ujo_timezones ujo_uninotify ujo_virt_resource_lookup ujo_web_services2 ujo_web_services ujo_wol_job ujo_zos_condcodes ujo_zos_dsn_trigger ujo_zos_job
R11.3.5 and later	In addition to the tables mentioned for R11.3: ujo_oraapps_props ujo_ws_criteria ujo_ws_parm ujo_ws_security

Secondary Connection

If the instance that you defined as the primary connection fails, AAI will use the secondary connection to receive both definition and run data from AutoSys. You define this connection here.

The secondary connection enables AAI to failover to a high availability AutoSys instance in those environments where an HA server is available.

Make sure you select the Use Secondary Connection checkbox to activate it.

The fields in this tab are identical to the field in Primary but for the failover definition options:

• AutoSys-implemented High Availability (Dual-database)

• Non-AutoSys-implemented Mirroring or Replication DB

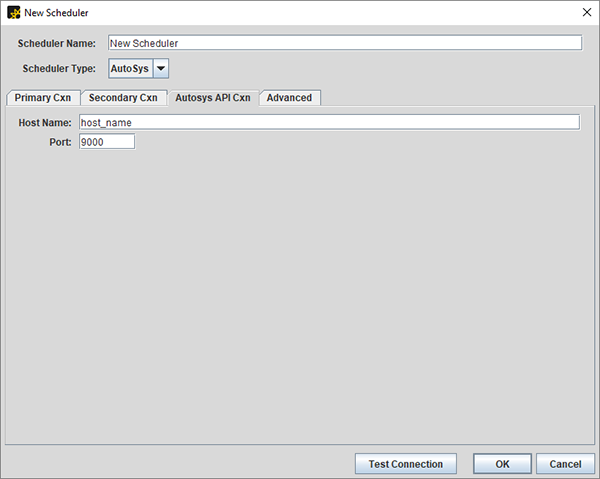

AutoSys API Connection

This connection is used for creating send events from the AAI server. The hostname should be that of the AutoSys scheduler. The port should be the port through which the AutoSys API should connect to this host.

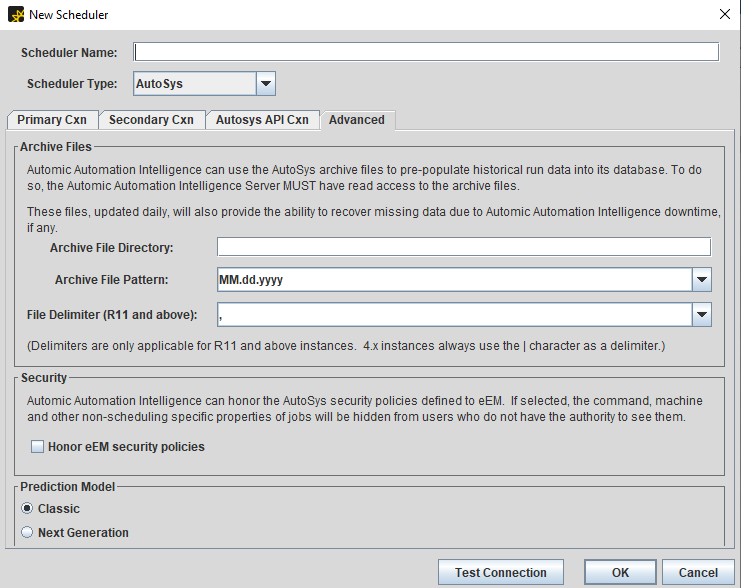

Advanced

• Archive Files:  When adding a new instance of AutoSys, you have the option of reading Archived files. This has the advantage of pre-populating with historical data for AAI to analyze and display. By providing AAI with the location of those archived files, AAI will load in all the archived job runs.

  These files, updated daily, will also provide the ability to recover missing data due to AAI downtime, if any.

• Archive File Directory:  This is the full path of the location of the archived events. AAI must have read access to the location.

• Archive File Pattern: AAI includes the three most regularly used patterns:

  • MM.dd.yyyy

  • MM.dd.yyyy.HH.mm.ss

  • yyMMdd

  The default is MM.dd.yyyy. If the pattern is not one of these three the user can enter in a new pattern in the combo box.

• Archive File Delimiters:AAI will always use the pipe character “|” for AutoSys 4.x schedulers no matter what the user selects in this drop-down. For AutoSys r11, the comma “,” is the default, however users can enter their own delimiter if needed.

• Security: AAI can honor the AutoSys security policies defined to eEM. When this is selected, non-scheduling specific job properties, such as the command and machine properties, are hidden from users who do not have the authority to see them.

• Prediction Model: AutoSys lets you select between two models:

  AutoSys lets you select between two models:

  • Classic

    This model allows for cross-instance dependencies within AutoSys only. Also, it predicts only the jobs that are in jobstreams.

  • Next generation

    This model allows for cross-instance dependencies between scheduler types. It generates predictions for the entire scheduler and not only for jobs that are in jobstreams. This is necessary for job-based analytics.

    Tip:

    We recommend you use the next generation prediction model unless in very specific use cases.

  You select the prediction model when adding a new scheduler. Once you save your changes, you cannot modify this setting any more. This means that these options are nor available on the Edit dialog.
