Examples: Web Service Response Parsing

Below are examples for different types of parsings for you to try out. The returned result is a String, it may be a single word, a number, or multiple words. In any case, the whole result is used. Therefore, you might want to first define a parsing that returns multiple results, and then fine tune it to only return a single result. For regular expression parsing examples, see a regular expression document.

JSONPath

Select JSONPath in the Parsing Type field and copy the following text and paste it into a parsing's Input box.

{ "store": {

   "book": [

    { "category": "reference",

      "author": "Nigel Rees",

      "title": "Sayings of the Century",

      "price": 8.95

    },

    { "category": "fiction",

      "author": "Evelyn Waugh",

      "title": "Sword of Honour",

      "price": 12.99

    },

    { "category": "fiction",

      "author": "Herman Melville",

      "title": "Moby Dick",

      "isbn": "0-553-21311-3",

      "price": 8.99

    },

    { "category": "fiction",

      "author": "J. R. R. Tolkien",

      "title": "The Lord of the Rings",

      "isbn": "0-395-19395-8",

      "price": 22.99

    }

  ],

    "bicycle": {

      "color": "red",

      "price": 19.95

    }

  }

}

Put each of the following expressions in the Expressions box and click Test:

• store.book[0]
• store.book[0].title
• store.bicycle
• store.bicycle.color

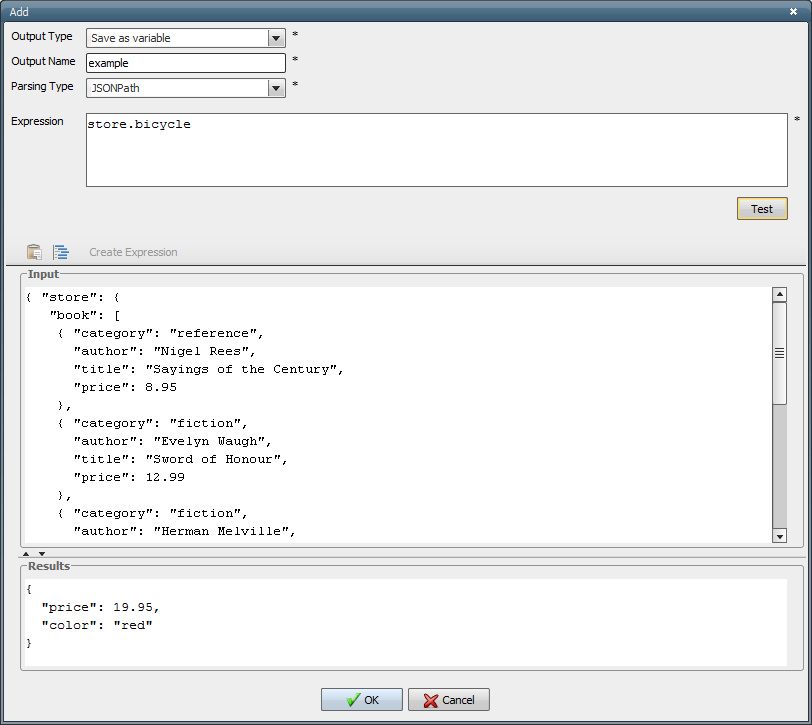

The parsing results will be displayed in the Results box as shown below.

XPath

Select XPath in the Parsing Type field and copy the following text and paste it into a parsing's Input box.

<?xml version="1.0" encoding="iso-8859-15" ?>

<store>

  <book>

    <author>Nigel Rees</author>

    <title>Sayings of the Century</title>

    <category>reference</category>

    <price>8.95</price>

  </book>

  <book>

    <author>Evelyn Waugh</author>

    <title>Sword of Honour</title>

    <category>fiction</category>

    <price>12.99</price>

  </book>

  <book>

    <author>Herman Melville</author>

    <title>Moby Dick</title>

    <category>fiction</category>

    <price>8.99</price>

    <isbn>0-553-21311-3</isbn>

  </book>

  <book>

    <author>J. R. R. Tolkien</author>

    <title>The Lord of the Rings</title>

    <category>fiction</category>

    <price>22.99</price>

    <isbn>0-395-19395-8</isbn>

  </book>

  <bicycle>

    <price>19.95</price>

    <color>red</color>

  </bicycle>

</store>

Put each of the following expressions in the Expressions box and click Test:

• /store/book
• /store/bicycle
• /store/book[1]/title

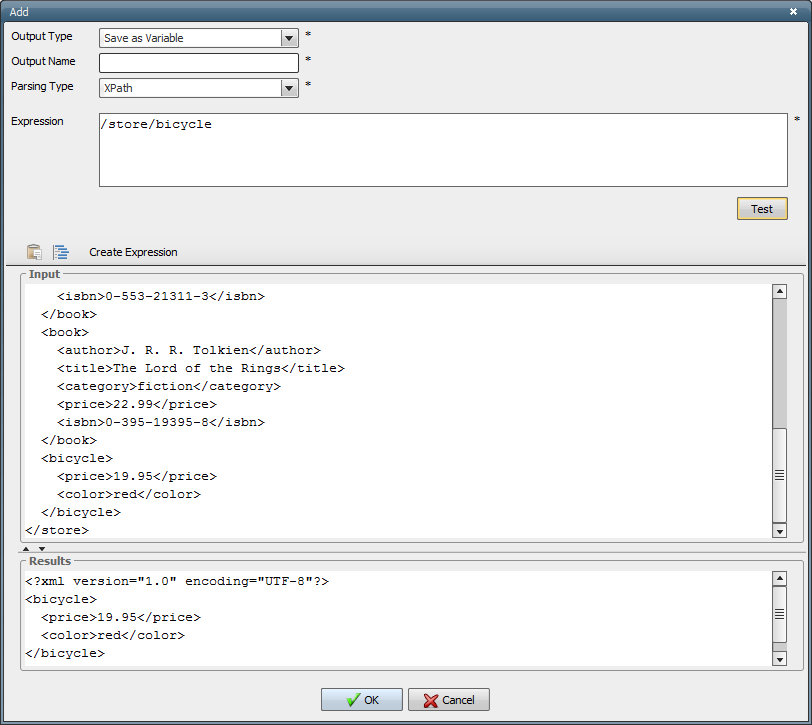

The parsing results will be displayed in the Results box as shown below.

XQuery/JSON XQuery

Query examples using the same JSON/xml as the JSONPath/XPath examples:

Example 1

for $x in $input/store/book

  return $x

Example 2

for $x in $input/store/book[1]

  return $x/title

Example 3

for $x in $input/store/book[1]

  return $x/title/text()

The parsing results will be displayed in the Results box as shown below.

Groovy

Groovy scripts are passed three variables:

• input: The response text
• path: The JsonSlurper.parseText() or XmlSlurper.parseText() result
• logger: used to write a message to the Job report

Path example:

def title = path.store.book[0].title

def author = path.store.book[0].author

Input example:

int n = input.indexOf ('bicycle')

return input.substring (n)

logger examples:

Example 1

String msg

logger.logMsg (msg)

Example 2

logger.logMsg ('test message')

JSON

A JSON example for the JsonSlurper from the previous examples would be:

path.store.book[0].title
