Configuring ECC Login and User Authentication

Automic offers different user authentication configurations which result in different user login options. As an administrator, you can configure ECC to support the authentication and login approach that you want. Sometimes prerequisite setup in Automation Engine is needed. This topic describes the authentication and login options and how you set them up.

By default, when users log into ECC, the entire authentication process is handled by the Automation Engine that the instance is connected to. AE confirms whether the user credentials match the values in the related user object (USER).

There are two options to make logging into ECC simpler for your users:

• Enabling single sign-on, which would allow users to log into ECC without entering their user name and password.
• Enabling auto-login, which provides the additional log-in parameters so users do not have to enter them at each login.

The login options that you can setup are described below:

• Using the Default ECC Login
• Enabling Single Sign-on in ECC
• Enabling Parametrized Login in ECC

Prerequisite:

In all cases, a user can only log into to ECC, when a user definition exists in the client exists. For information, see User Definitions.

Using the Default ECC Login

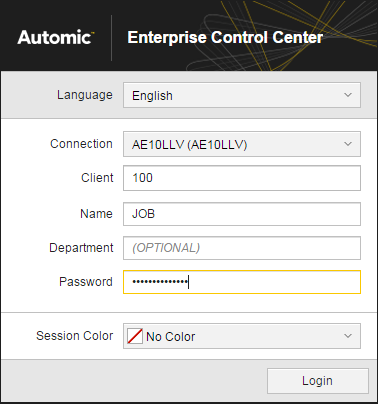

By default the ECC users have to provide the following login information when they open the ECC:

Your browser stores your login entries (except password) for your next login.

Note: You can always change the session color from the session menu in the main menu bar.

Enabling Single Sign-on in ECC

When users log into ECC, usually the login is authenticated by the Automation Engine that the instance is connected to. If single sign-on (SSO) is set up in the Automation Engine for the connection, you can enable SSO for users in ECC. Single sign-on allows users log into ECC without having to enter their user details or password because their authentication information is taken from their user profile in the Windows Active Directory .

What you have to do

1. First, make sure SSO has been configured in the connected AE system.

   For information about the prerequisite AE setup, see the topic "Setting Up Single Sign-On" under "Installation Procedure" in the Automation Engine webhelp on docs.automic.com. Also, define the UC_KDC_SETTINGS as described under "Settings in Variables" in the same webhelp.

2. In your ECC instance, set the sso.enabled property to "true" in the configuration.properties.

3. In each user definition, select LDAP Connection on the General > User Information page.

   See User Definition: The User Information Page for information.

Results

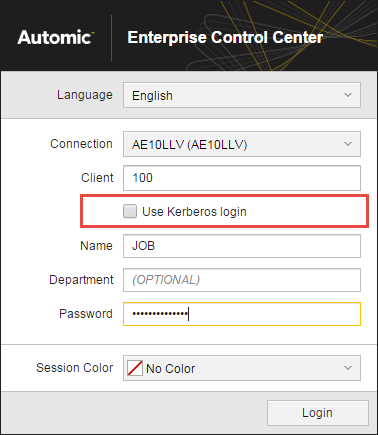

When you, or any user, logs in the first time, the login window will have an additional Use Kerberos login option.

• If you do not select this option, you will need to log in with your AE user information (Name, Department, and Password).

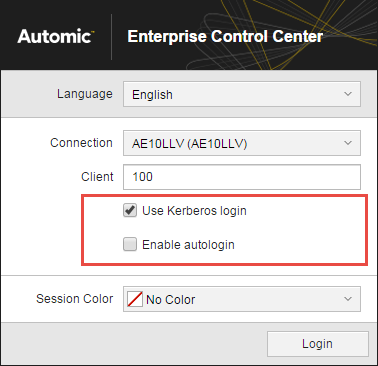

• If you select the Use Kerberos login option, then the Name, Department, and Password fields disappear, and an additional Enable autologin option appears.
  • If you do not select the Enable autologin option, then when you log into ECC, you can change your session options (Language, Connection, Client, Session Color), but you do not have to enter your user information or password.
  • If you want to skip entering any login information in the future, then first select your session options and then select Enable autologin. The next time you start ECC, you will bypass having to enter login information.

    Tip: If you want to change the session information in the future, empty your browser's cache. When you start ECC the next time, you will have the full login window again.

SSO (Kerberos) Enabled	Kerberos Selected

Losing Kerberos connection

If you lose Kerberos connection, the login page will appear, regardless of your previous choices, and you will see the following warning message on the login page:

This can happen if you log in from a computer or server that is not in the Windows domain where Kerberos is installed or if there is a problem in the configuration or Kerberos. In the meantime, you can log in with your Automic user name and password.

Reason: When an ECC instance is set up for SSO, authentication is passed onto Kerberos. If Kerberos is not in the Windows domain, then Windows tries to authenticate with Windows NT LAN manager (NTLM) which cannot process the Kerberos authentication information. The login defaults to the standard Automic login, which is described previously in Using the Default ECC Login.

Enabling Parametrized Login in ECC

Another convenience feature is enabling parametrized login, which you do by appending the login parameters in the URL that you use to start ECC. This is helpful if you or users use several connections and/or clients. You can just bookmark the various login combinations. When you open the bookmarked URL, you have to enter only your password.

What you have to do

1. In your ECC instance, set the parameter_login.enabled property to "true" in the configuration.properties.

2. In your ECC startup URL append the login information that you want to have already entered in the login window, so that the URL looks like this:

   https://<ECC >/#&system=ConnectionName&client=9999&name=MyUserName&department=Dept

   Note: If your browser is not accessing ECC over an SSL protocol, your URL will start with http://.

As an administrator, you might want to send individualized URLs to your new users.
