Cache Page

The Cache page is part of the Administration perspectiveVolet fonctionnel propre de l'interface Web Automic (AWI)..

Overview

The Cache page offers an overview of all items currently stored in the system's cache and additional information about them. The information available here is useful for setting up your system's server input buffer sizes.

Functions

Automation EngineCe composant commande un système Automation Engine. Il se compose de plusieurs processus serveur. Cache: Information requested from the database is stored in the Server input buffer and can so quickly be read whenever required. This procedure improves system performance as it is less time-consuming than repeatedly calling the database.

Keep this in mind when specifying the maximum size of the server input buffer in the Processes & Usage Page page. The value depends on the memory that is available on your computer.

Where to find the page:

The Administration perspective is only available, if the user has the required privilege.

  1. In the AWIProduit Automic : interface Web, simple et claire, qui permet l'+char(39)+'accès aux différentes fonctionnalités d'+char(39)+'Automation Engine. open the Administration perspective.
  2. In the Navigation pane to the left, find the entry Cache.
  3. Click on its tab to open the Cache page table.

In the toolbar the default buttons Export to export the table content as .csv and Refresh are available.

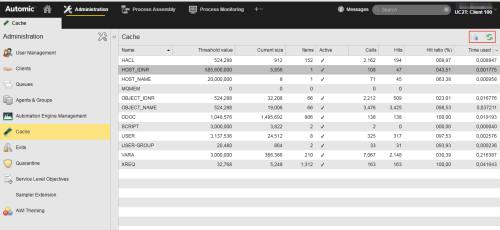

Cache Table Information

The following information is provided in the table columns:

Column

Description

Name

Area of the server input buffer:

Details about these cache types find in: Cache Usage

Current size

Currently used cache size

Active

The cache is active if this checkbox is checked

Calls

Number of input buffer calls

Hits

Number of entries found in the cache

Hit ratio

Hits of the primary work process in percent

Time used

Total time consumed by the work processes for calling the cache

See also:

Server
Cache Usage
