Trimming Jobstreams

When you create or edit a jobstream, AAI traces all the way upstream to the very first job (or jobs) that must execute in order for a downstream target job to run. In large environments, a jobstream can contain thousands of upstream jobs. However, not all those jobs are relevant to the functional or scheduling context of the target job. Including them can lead to less accurate predictive analytics for the target job

As a jobstream administrator, by trimming a jobstream you remove the unwanted predecessors for the target job. As a result, the jobstream contains only the processes that are critical to the business.

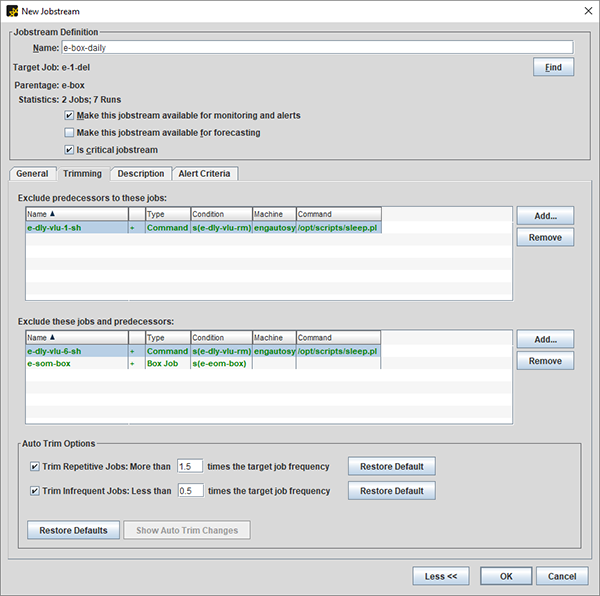

AAI provides two auto-trim options to trim jobs upon jobstream creation based on their frequency of execution. When predecessor jobs are executed in a frequency that does not correlate with that of the target job, this is usually an indication that they are not part of the same business logic

Trim Repetitive Jobs

Suppose that one of the predecessors of a target job pulls data every minute to check for a file due to a true/false validation; it can only run if the validation returns a true value. This is a purely technical process that has no relevance for the jobstream analysis and predictions and that would clog the jobstream views.

Set the Trim Repetitive Jobs value to 1.5 or 2, AAI to automatically remove these high frequency jobs.
Trim Infrequent Jobs

Suppose that the target job executes once a day and it has a dependency on a job that produces a report and that executes once a week. This predecessor has no impact whatsoever on the runtime values of the target job.

Set the Trim Infrequent Jobs to 0.5 to automatically remove these type of jobs.

Important !

The auto-trim feature is particularly relevant for AutoSys. With other schedulers, such as Automic, this feature must be used with caution because it can remove processes that should be taken into account for jobstream calculations.

Difference Between Setting the Start Job and Trimming

Trimming a jobstream and setting the start job are two different functions. While by trimming you actually prevent data from being collected in the first place, the start job feature is a merely monitoring one. With the start job function, AAI does collect the data from jobs that are part of the jobstream but that do not start it because they are part of the operational logic of the batch process that you want to monitor.
