Release Board

The Release Board view is a graphic representation of the Tasks and Phases that make up the Release Plan.

To View the Release Board

Open the Release Planner Perspective.
Double-click a release to open it.
Click the Release Board tab.
The Phases and Tasks defined for the release are shown. The elements of the release can be rearranged, edited or deleted provided the user has sufficient rights for it.

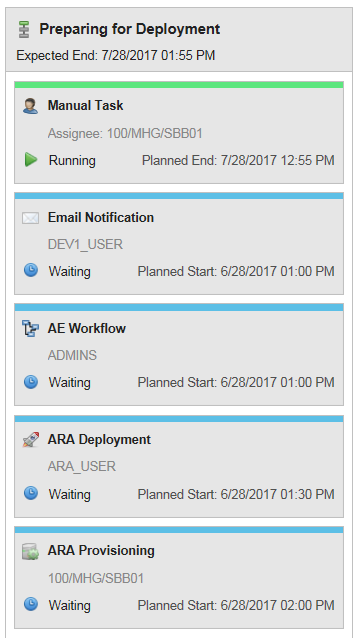

Task types can be identified by the icon displayed to the left of the Task name:

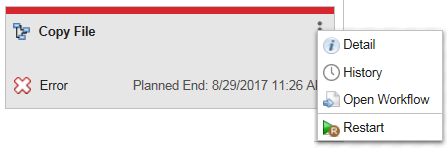

Running and failed AE and ARA tasks include a link to see the workflow execution in the Process Monitoring perspective. To open it, right-click the Task and select Open Workflow.

The following information is shown:

Name of the Release Phase.
Name of the Release Task
Task status: the active Task is highlighted.
Planned end date and time (for Tasks with status "Not started yet - Draft", "Running", "Pausing" & "Canceled").
Duration/Delay (for Tasks with status "Success - Completed")
If the task execution took longer than expected, the late task icon () is displayed next to the extra time.

Status Colors

You can easily recognize the status of each Task by the color stripe on the top:

Blue: Draft, Waiting.
Green: Running, Finished.
Yellow: Running late.
Red: Error
Grey: Completed, Skipped, Disabled.

Release board summary bar

The release board summary bar shows basic information of the Release Plan at a glance: start time, planned duration (expected duration of the Release Plan execution), calculated duration (sum of the execution times of the tasks), number of tasks completed and status.

The information displayed is read-only.
